REPLACES:
DENSO: 228000-527 2280004570 228000-4571 2280004572 228000-5270 2280005271 228000-5272 2280005273
KUBOTA: 15425-63014 1542563015 15425-63016 1749063014 1K371-63010
PRESTOLITE: 20513033
YAMAHA: 1MC8189001

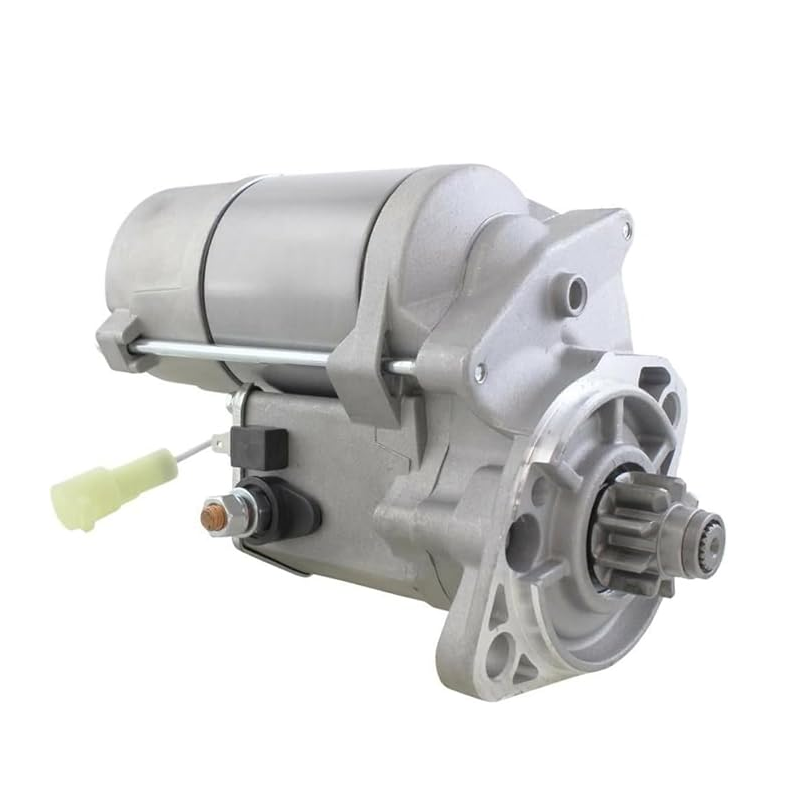

ITEM DESCRIPTION: STARTER
UNIT TYPE: DENSO
STARTER TYPE: OSGR
VOLTS: 12
ROTATION: CLOCKWISE
TEETH ON DRIVE: 9
KW: 2
GEAR OD: 1.315IN / 33.4MM
LENGTH: 7.268IN / 184.6MM
MOUNTING EAR 1 HOLE: 11.7MM UNTHREADED
MOUNTING EAR 2 HOLE: 11.7MM UNTHREADED
MOUNTING EAR CENTER TO CENTER 1: 4.11IN / 104.4MM
REGISTRY OD: 3.24IN / 82.3MM
SPECIFICATIONS: M8-1.25 B+ & MOTOR STUDS
SPECIFICATIONS: MALE SPADE S TERMINAL INSIDE PLASTIC PLUG
SPECIFICATIONS: 200MM LEAD FROM MOTOR STUD W/FEMALE SPADE TERMINAL INSIDE PLASTIC PLUG
WEIGHT: 10.43 LBS / 4.74 KG
APPLICATIONS:
CASE TRENCHER 560 KUBOTA V2203 DSL 1994-2001
CASE TRENCHER 6010 KUBOTA V2203 DSL 1997-2007
