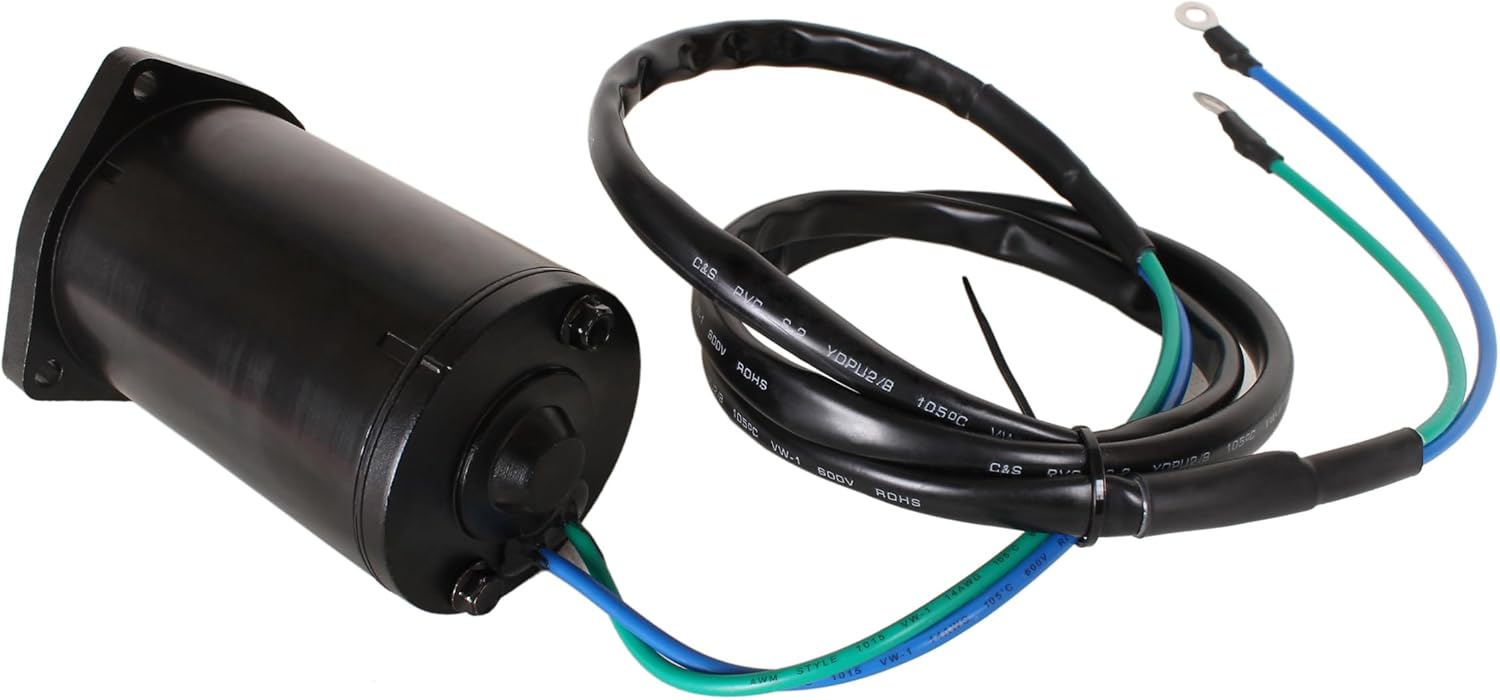

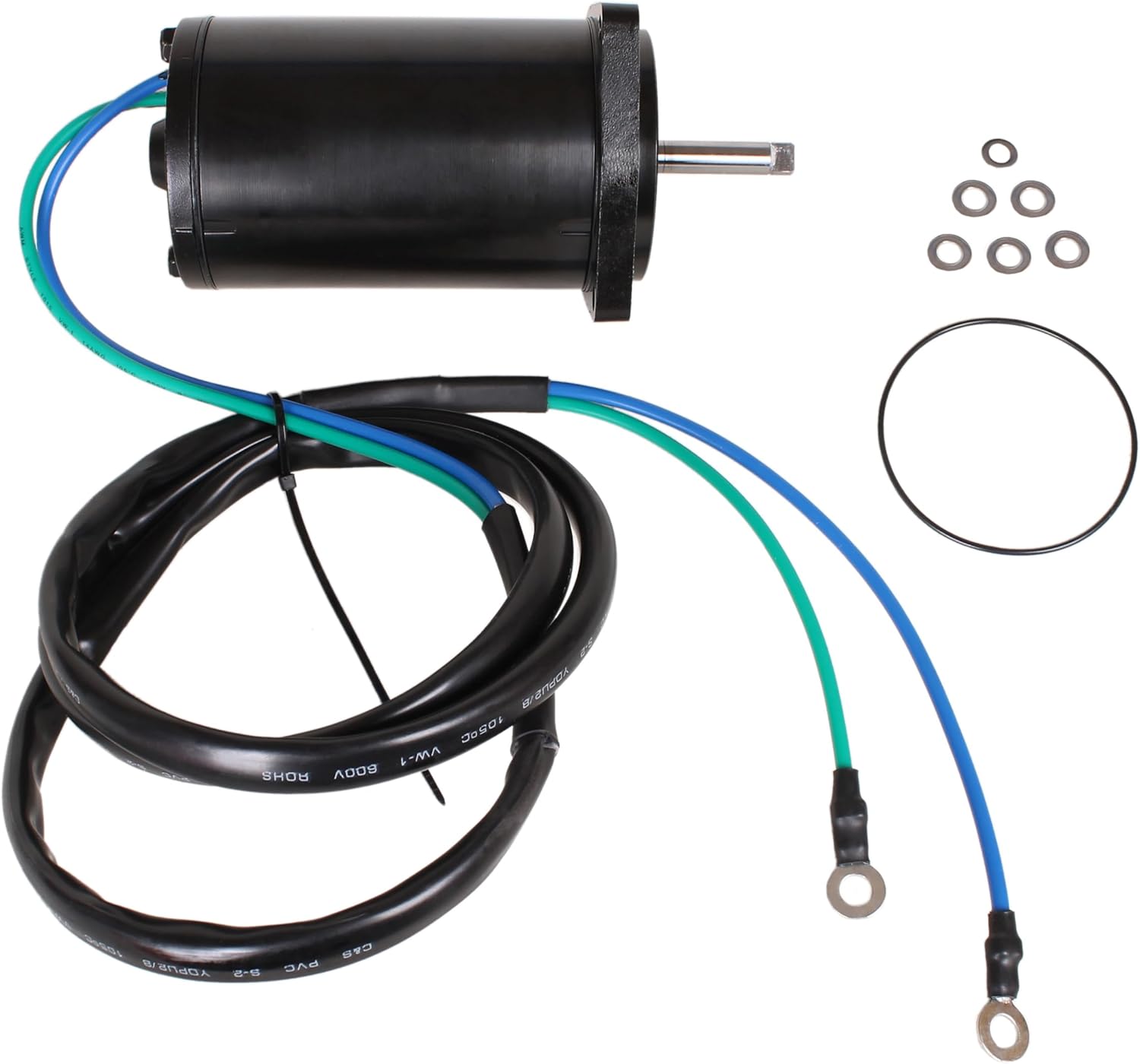

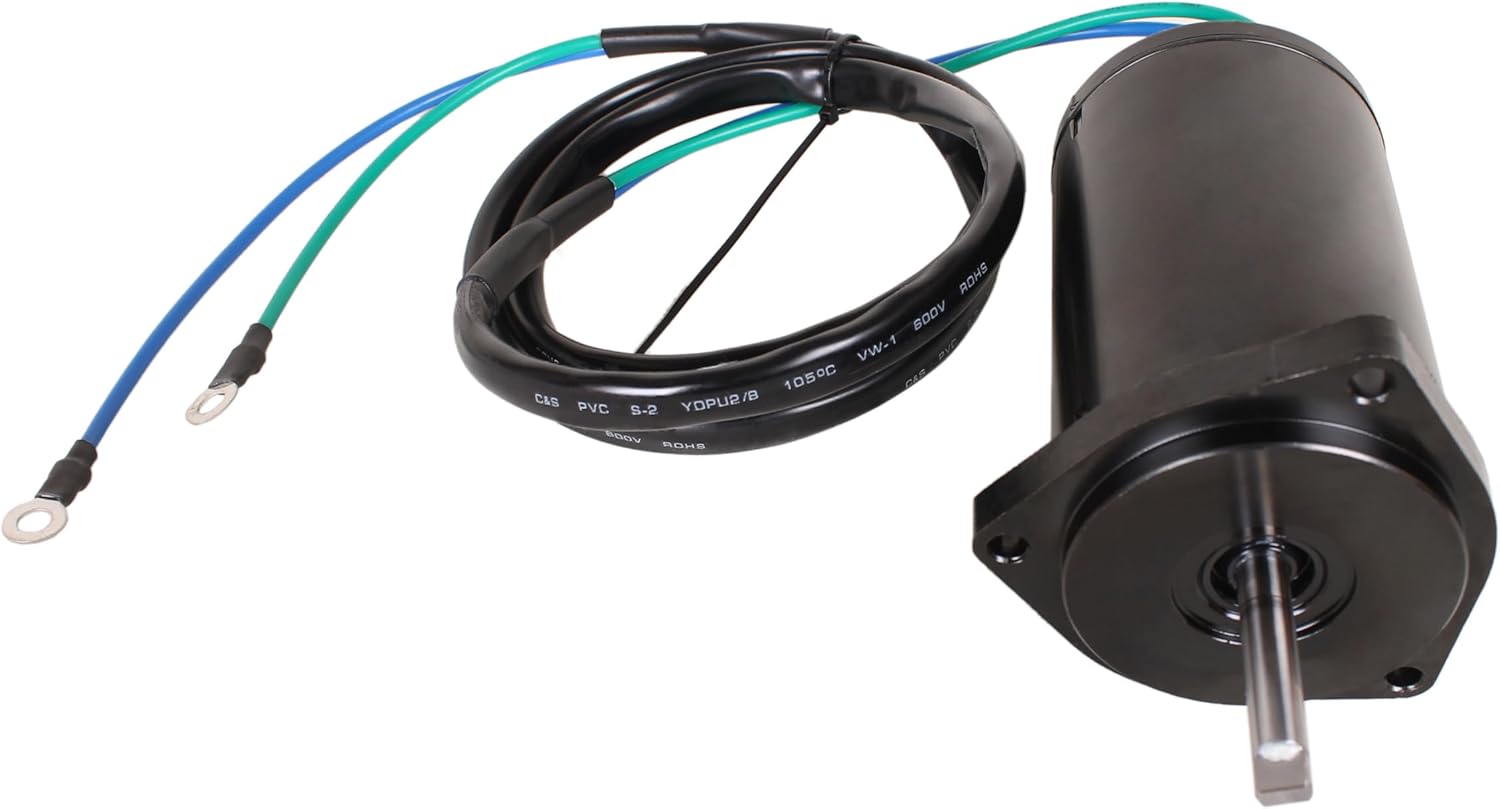

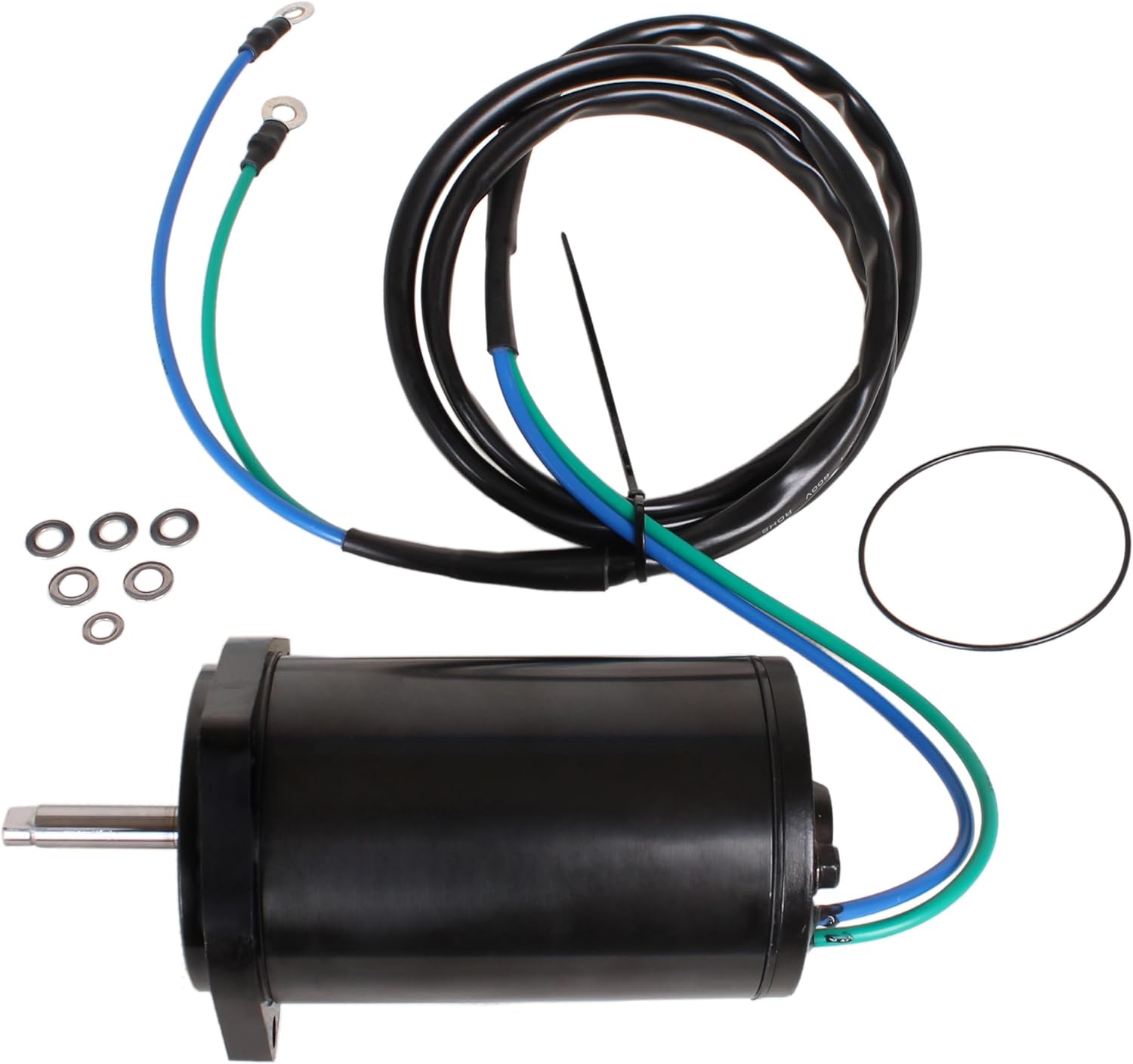

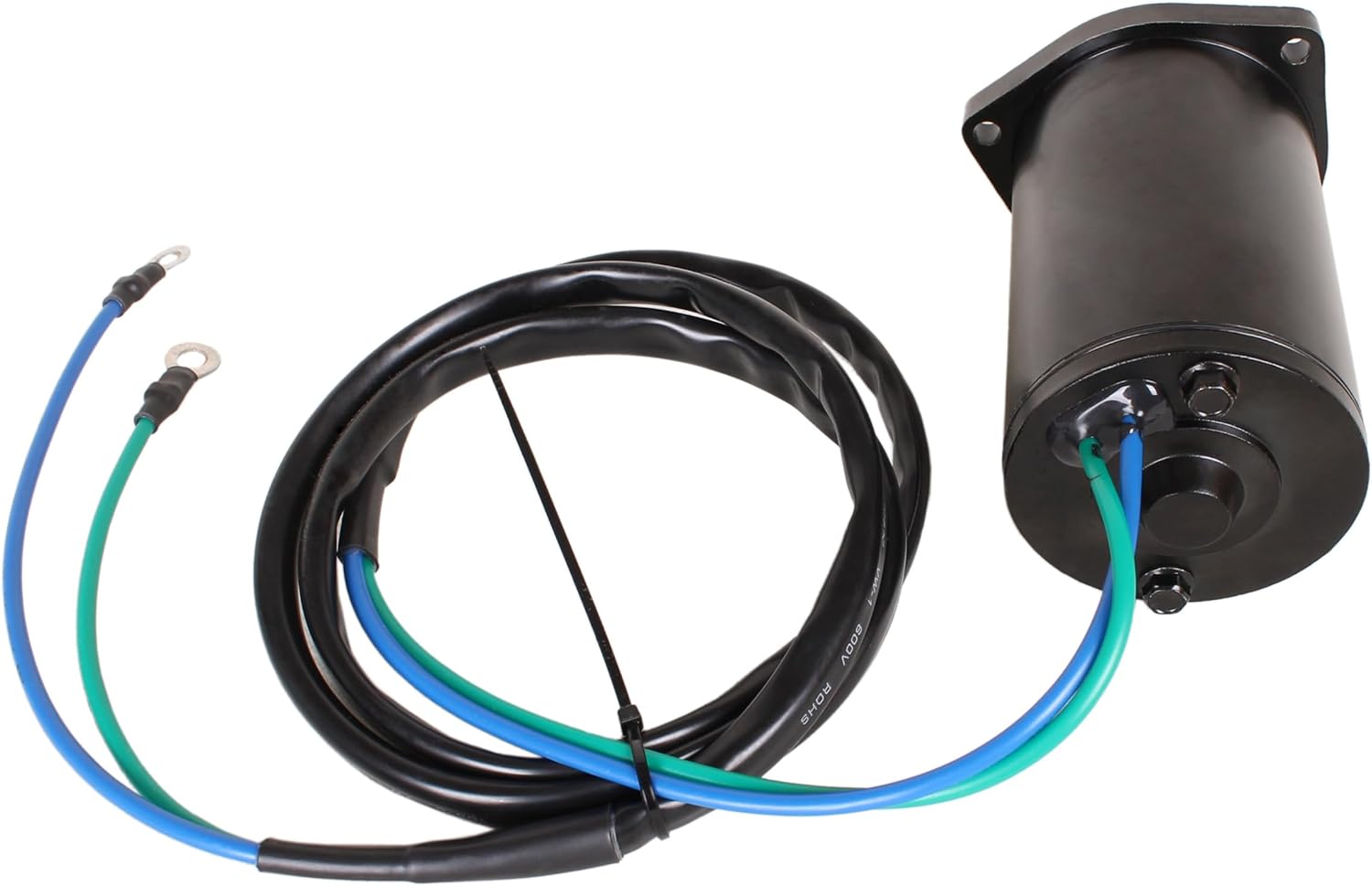

Tilt Trim Motor

• Fit Engine: 40HP 50HP 60HP 70HP 100HP

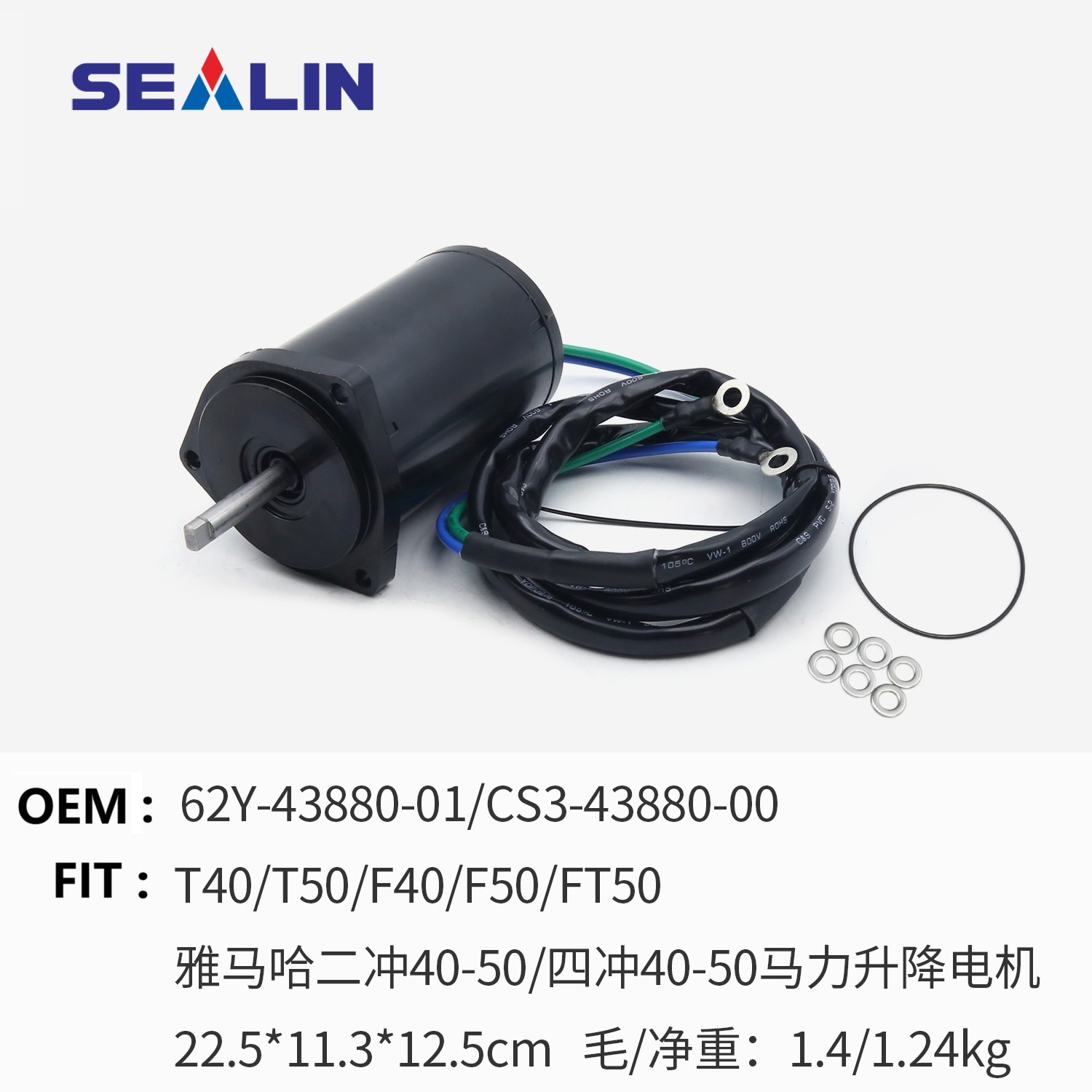

• Fit Part Number: fit API MARINE PT614NM, fit ARCO 6259, fit ARROWHEAD TRM0071, fit EMP PARTS 4-6811, fit J & N 430-22090, fit LESTER 10834, fit WAI 10834N, fit YAMAHA 62Y-43880-01-00, 62Y-43880-02-00, 69W-43880-00-00, 69W-43880-09-00, CS3-43880-00-00, 62X-43880-09
• Voltage: 12V; 2-Wire; O-Ring Included; Rotation: BI; Shaft Type: Tang Shaft;

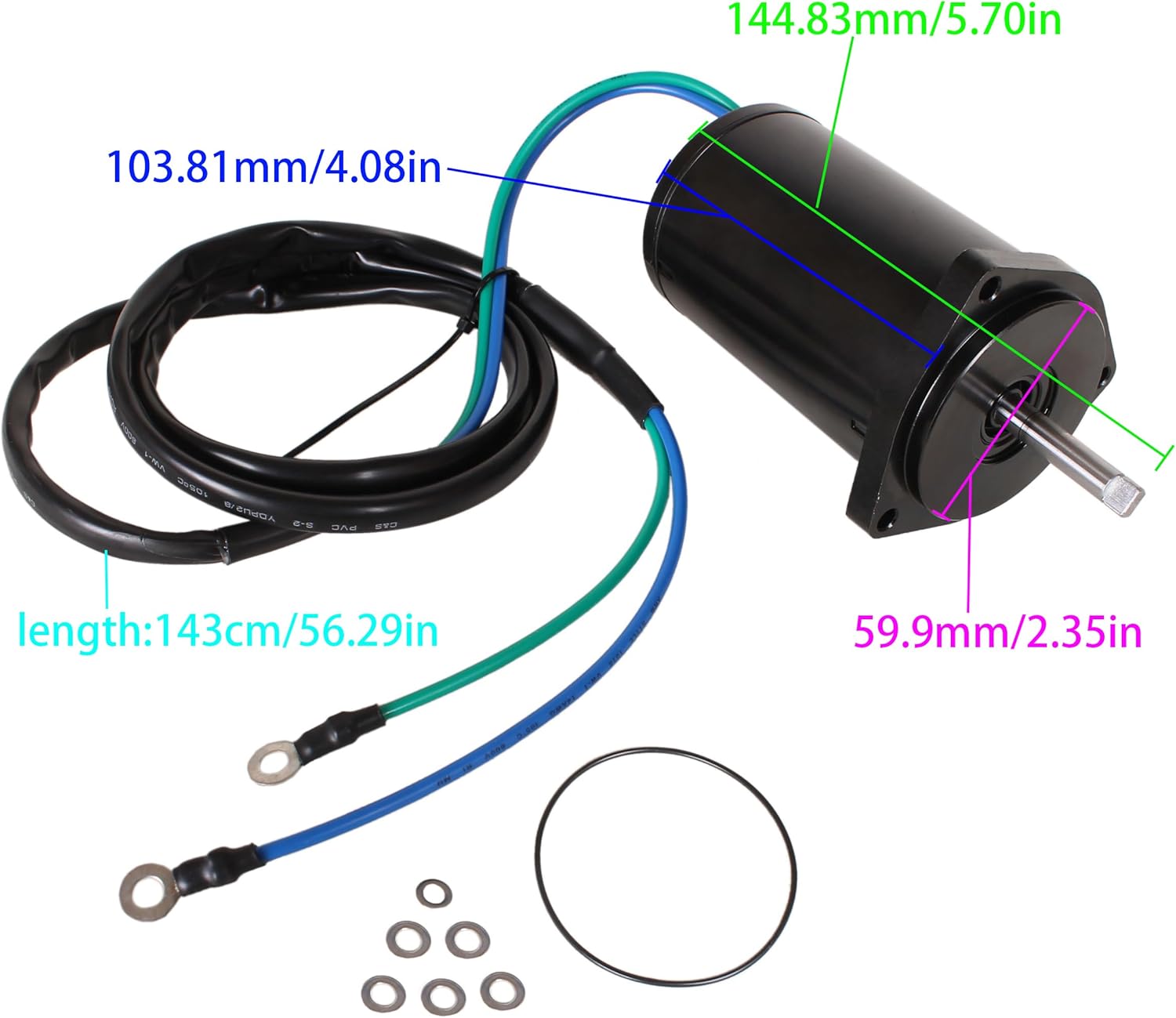

• Overall Length: 63.6mm; Shaft Overall Length: 37mm; Shaft OD: 7.9mm; Number of Mounting Holes: 3;
• If you are unsure, please provide your engine serial number.

• Application:

  This 69W-43880-00 01 MOTOR ASSY fits Yamaha the following models and components:

  2003 60HP F60TLRB 2003 Power Trim & Tilt Assy 2

  2003 60HP T60TLRB 2003 Power Trim & Tilt Assy 2

  2004 60HP F60TLRC 2004 Power Trim & Tilt Assy 2

  2002 60HP F60TLRA 2002 Power Trim & Tilt Assy 2

  2004 60HP T60TLRC 2004 Power Trim & Tilt Assy 2

  2010 70HP F70LA April 2010 Power Trim & Tilt Assy 2

  2004 60HP F60TJRC 2004 Power Trim & Tilt Assy 2

  2010 70HP F70LA 2010 Power Trim & Tilt Assy 2

  2005 60HP F60TJRD 2005 Power Trim & Tilt Assy 2

  2013 70HP F70LA 2013 Power Trim & Tilt Assy 2

  2012 70HP F70LA 2012 Power Trim & Tilt Assy 2

  2011 70HP F70LA 2011 Power Trim & Tilt Assy 2

  2015 70HP F70LA 2015 Power Trim & Tilt Assy 2
