Fit Engine: 130HP 150HP 175HP 200HP 225HP 250HP

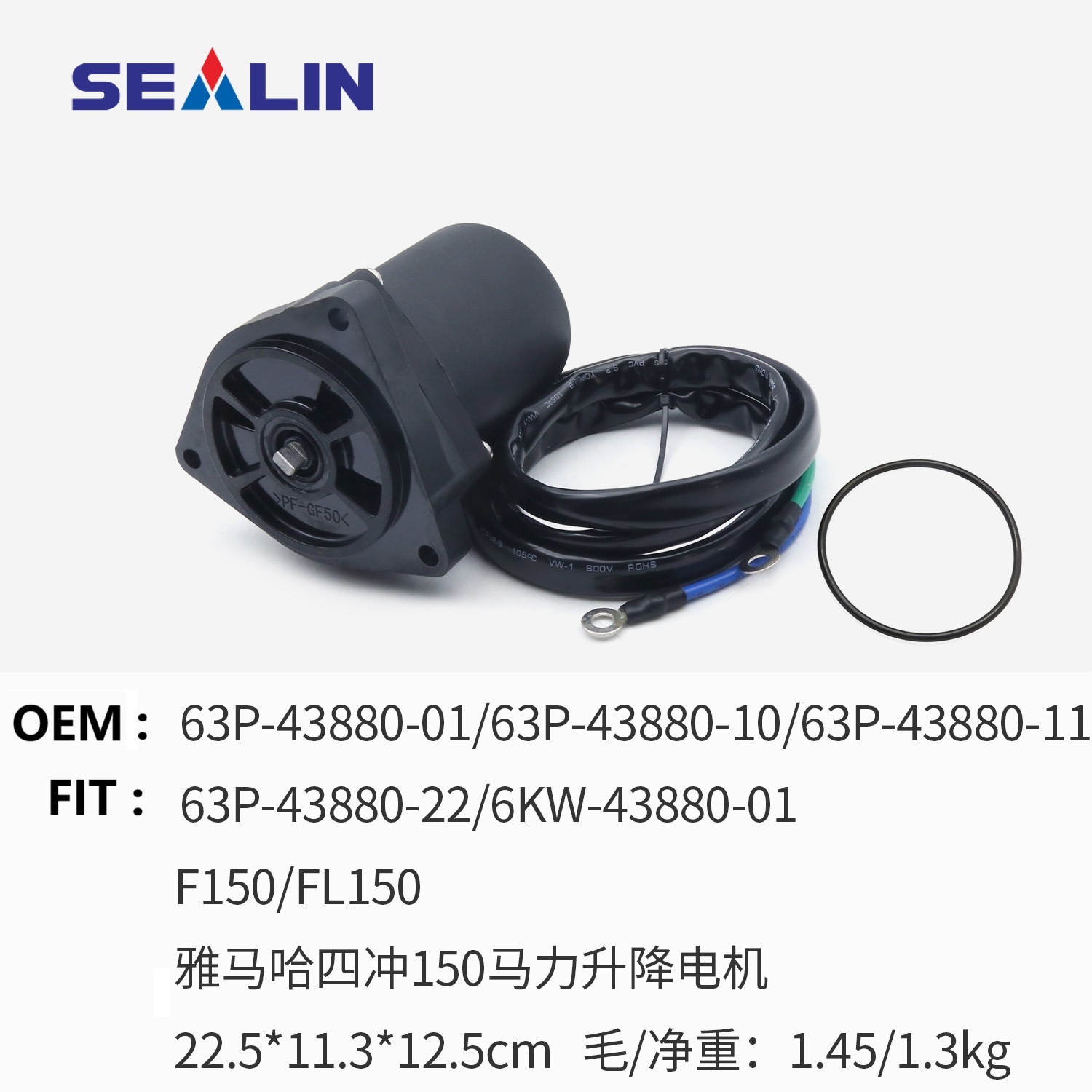

Fit Part Number: fit ARROWHEAD: TRM0111, fit J & N: 430-22162, fit Arco 6293, fit Yamaha: 63P-43880-01 63P-43880-10 63P-43880-11 63P-43880-21 63P-43880-22 6KW-43880-01 6KW-43880-01

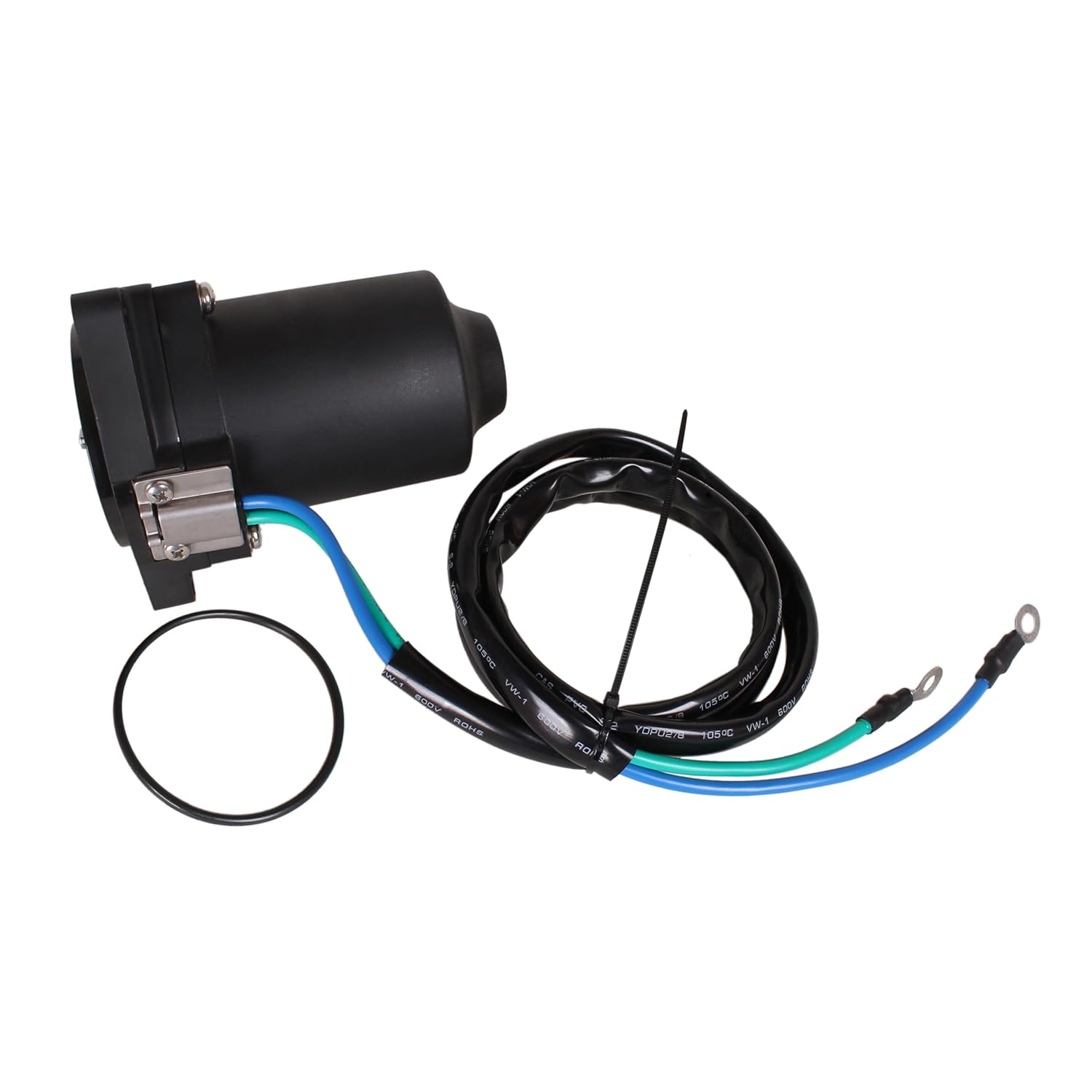

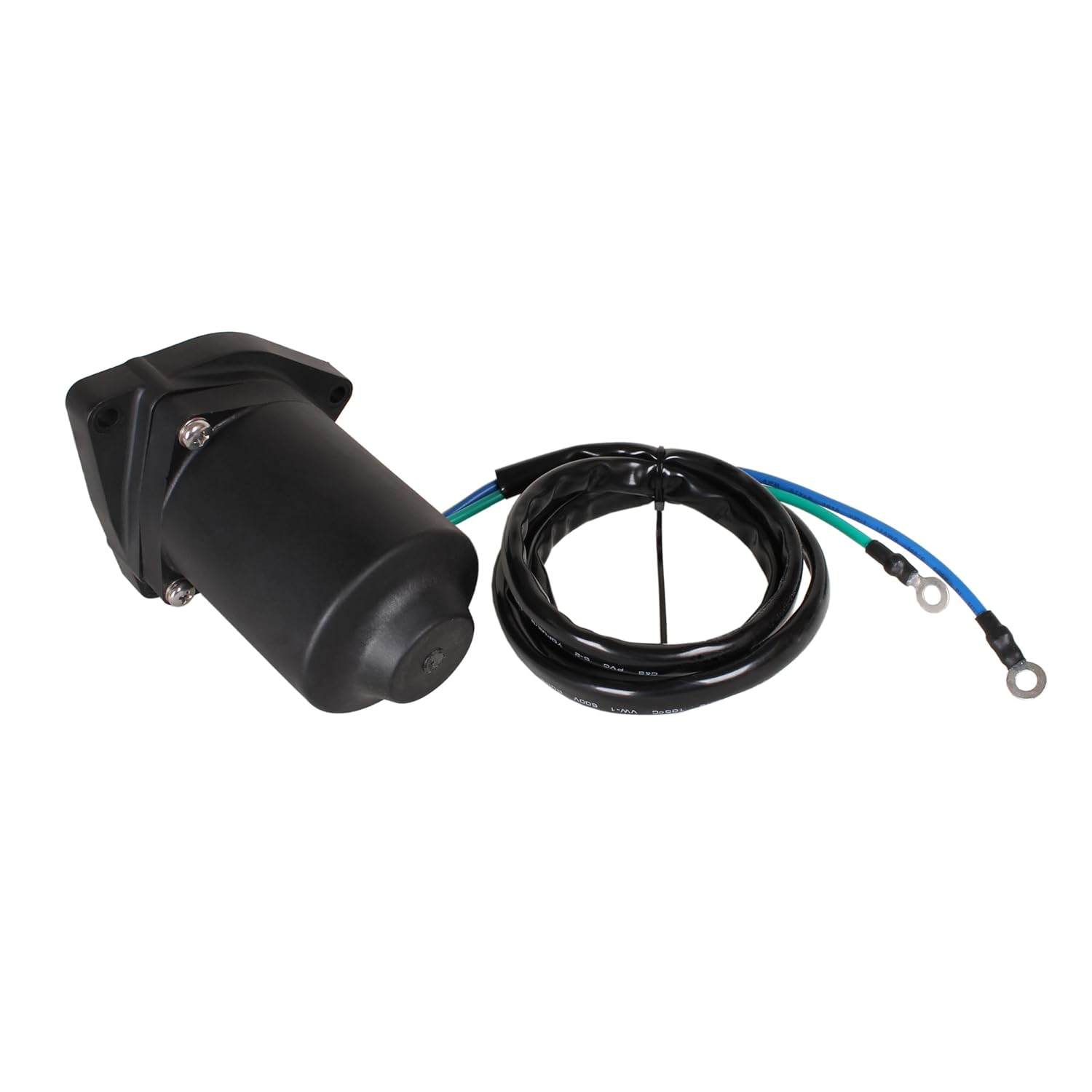

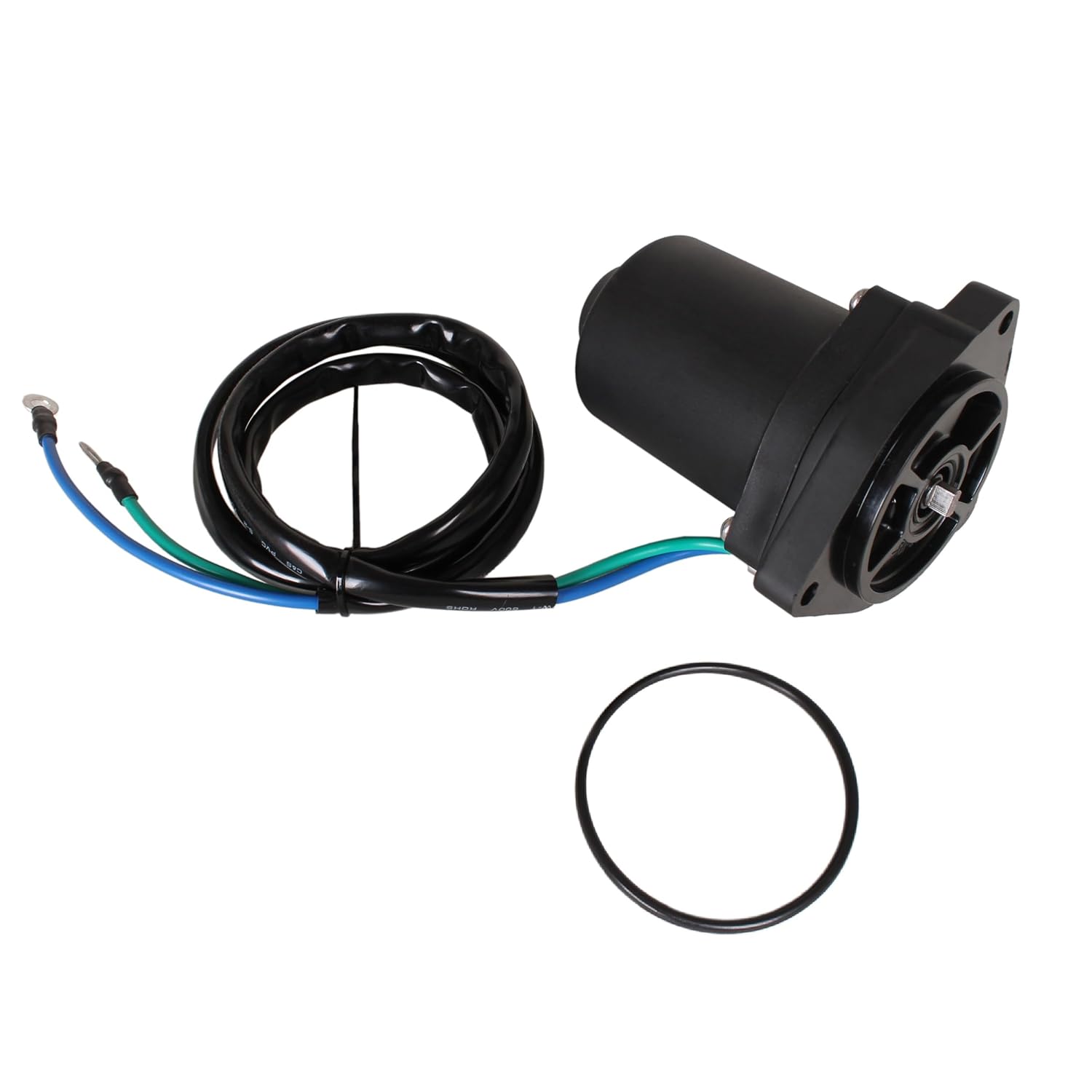

Round Plug-In Connector, 2 Wires, Includes O-ring, 3-bolt mount, Voltage 12V, Rotation: RE
Dimension: Replacement Unit:, 65.5mm Field Hsg. OD, 68.3mm Registration OD, OAL 124.5mm Incl. Shaft, 7.9mm OD Shaft, w/3.9mm x 6.1mm Tang, Mtg. Holes 7mm, Mtg. Ring 68.3mm OD, Coupler 4.28mm x 8mm Flat Blade
If you are unsure, please provide your engine serial number.
2
Application:
This 63P-43880-10-00 MOTOR ASSY fits Yamaha the following models and components:
2012 150HP LF150XA 2012 Power Trim & Tilt Assy 2
2013 150HP F150JA 2013 Power Trim & Tilt Assy 2
2011 150HP F150TLR 2011 Power Trim & Tilt Assy 2
2014 150HP LF150XA 2014 Power Trim & Tilt Assy 2
2011 150HP F150TXR 2011 Power Trim & Tilt Assy 2
2012 150HP F150JA 2012 Power Trim & Tilt Assy 2
2013 150HP LF150XA 2013 Power Trim & Tilt Assy 2
2014 150HP F150JA 2014 Power Trim & Tilt Assy 2
2014 150HP F150LA 2014 Power Trim & Tilt Assy 2
2013 150HP F150LA 2013 Power Trim & Tilt Assy 2
2014 150HP F150XA 2014 Power Trim & Tilt Assy 2
2012 150HP F150XA 2012 Power Trim & Tilt Assy 2
2011 150HP F150TJR 2011 Power Trim & Tilt Assy 2
3
2012 150HP F150LA 2012 Power Trim & Tilt Assy 2
2013 150HP F150XA 2013 Power Trim & Tilt Assy 2
2011 150HP LF150TXR 2011 Power Trim & Tilt Assy 2
This 63P-43880-22-00 POWER TRIM MOTOR 63P-43880-22-00 fits Yamaha the following models and components:
2019 150HP F150JB 2019 Power Trim & Tilt Assy 2
2018 175HP VF175XA 2018 Power Trim & Tilt Assy 2
2021 200HP LF200XCA2 Power Trim & Tilt Assy 2
2021 150HP F150LCA Power Trim & Tilt Assy 2
2020 175HP F175LA 2020 Power Trim & Tilt Assy 2
2018 130HP LF150XB 2018 Power Trim & Tilt Assy 2
2021 150HP LF150XB2 Power Trim & Tilt Assy 2
2020 200HP F200LCA 2020 Power Trim & Tilt Assy 2
2020 200HP LF200XCA 2020 Power Trim & Tilt Assy 2
2021 200HP LF200XB2 Power Trim & Tilt Assy 2
2021 175HP VF175LA Power Trim & Tilt Assy 2
2021 200HP F200LB Power Trim & Tilt Assy 2
2021 200HP F200LCA Power Trim & Tilt Assy 2
……
